Lab Kits: ECE 120

Kit Variations

Selection based on previous lab enrollment, you will not need to select the variation at time of order.

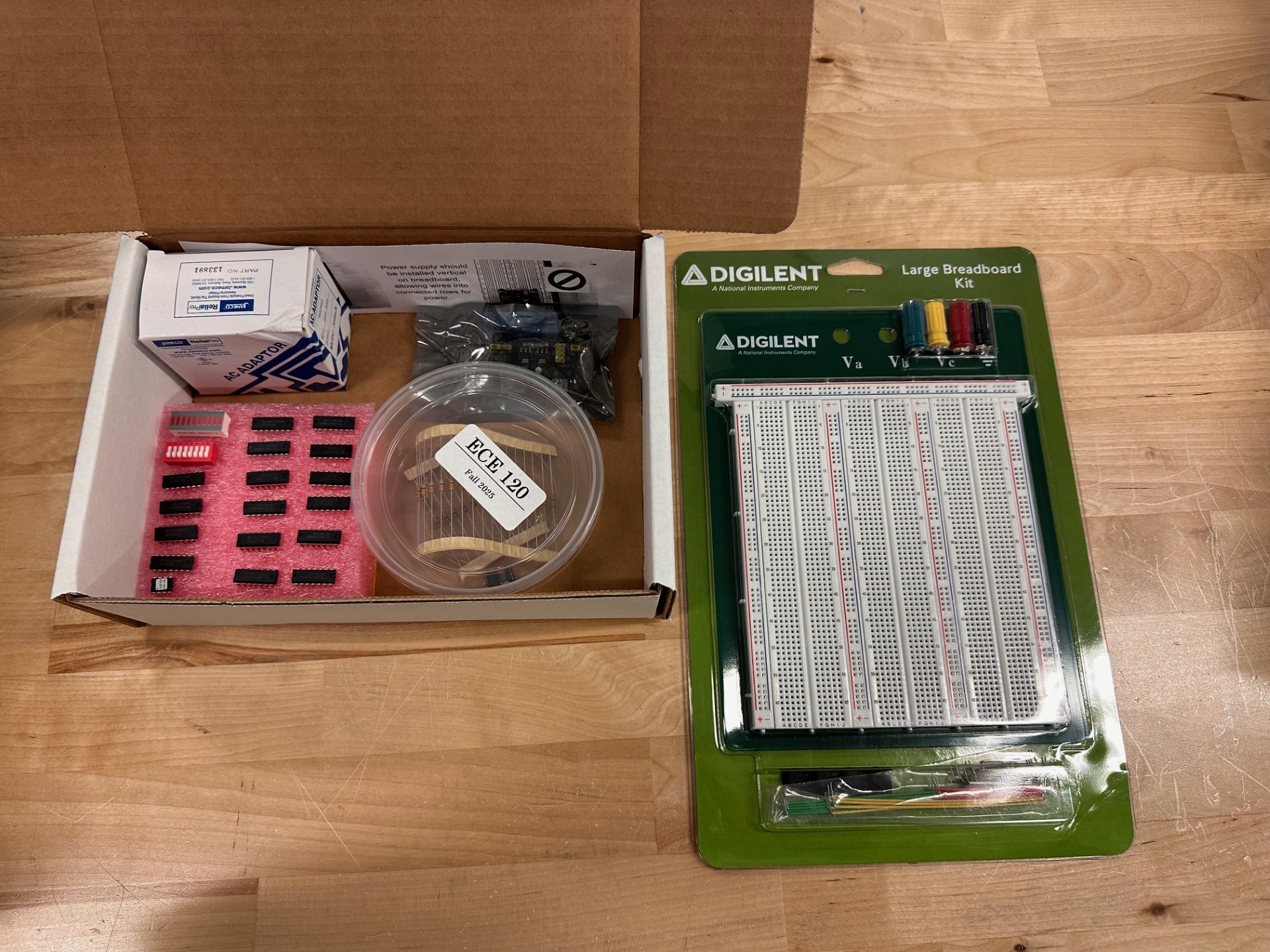

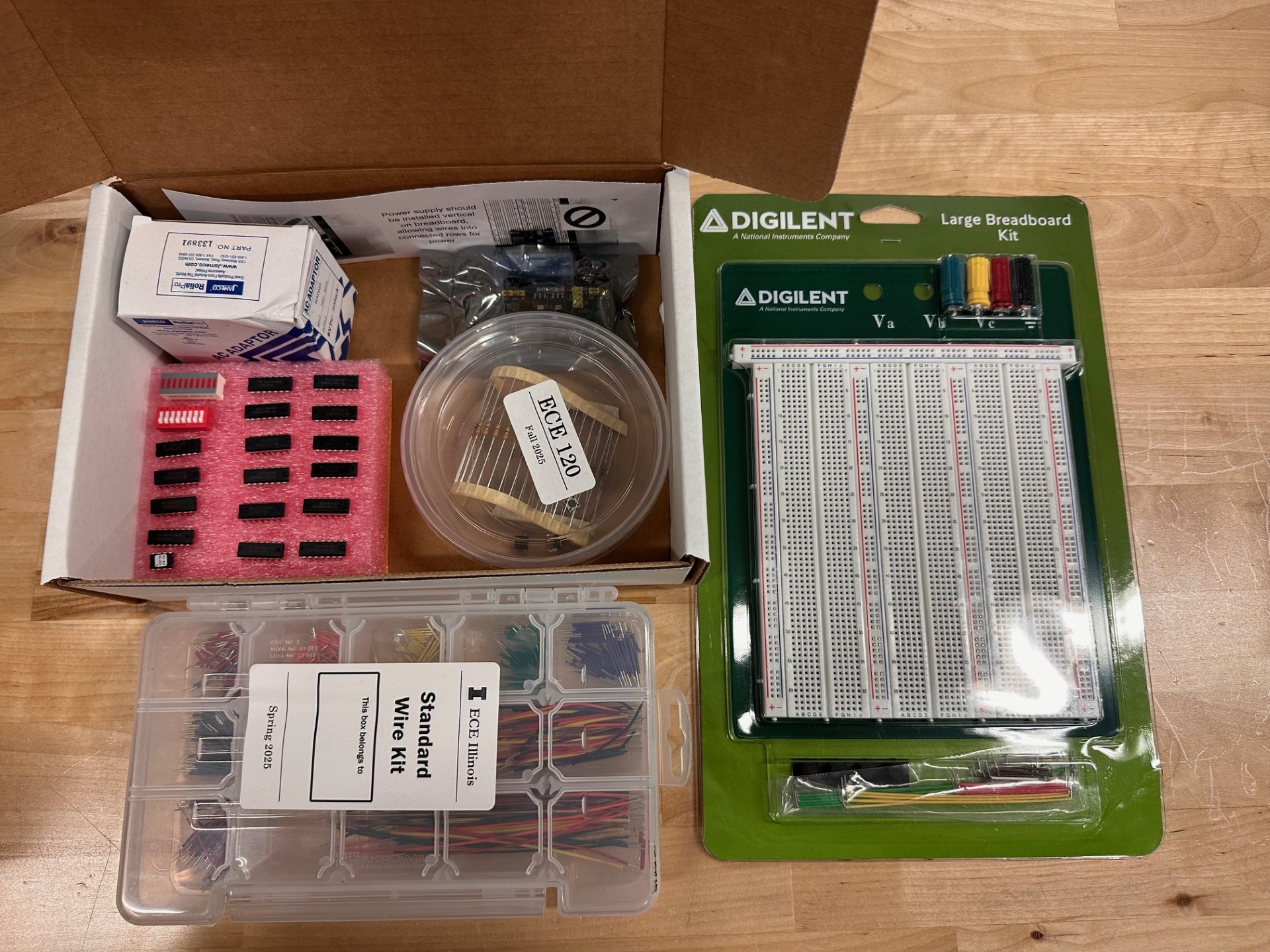

ECE 120 A Kit ECE 120 C Kit ECE 120 D Kit
  • ECE 120 Component Kit
  • Large Breadboard
  • Standard Wire Kit
  • Breadboard Power Supply + AC Adapter
  • ECE 120 Component Kit
  • Large Breadboard
  • Breadboard Power Supply + AC Adapter
  • ECE 120 Component Kit
  • Breadboard Power Supply + AC Adapter

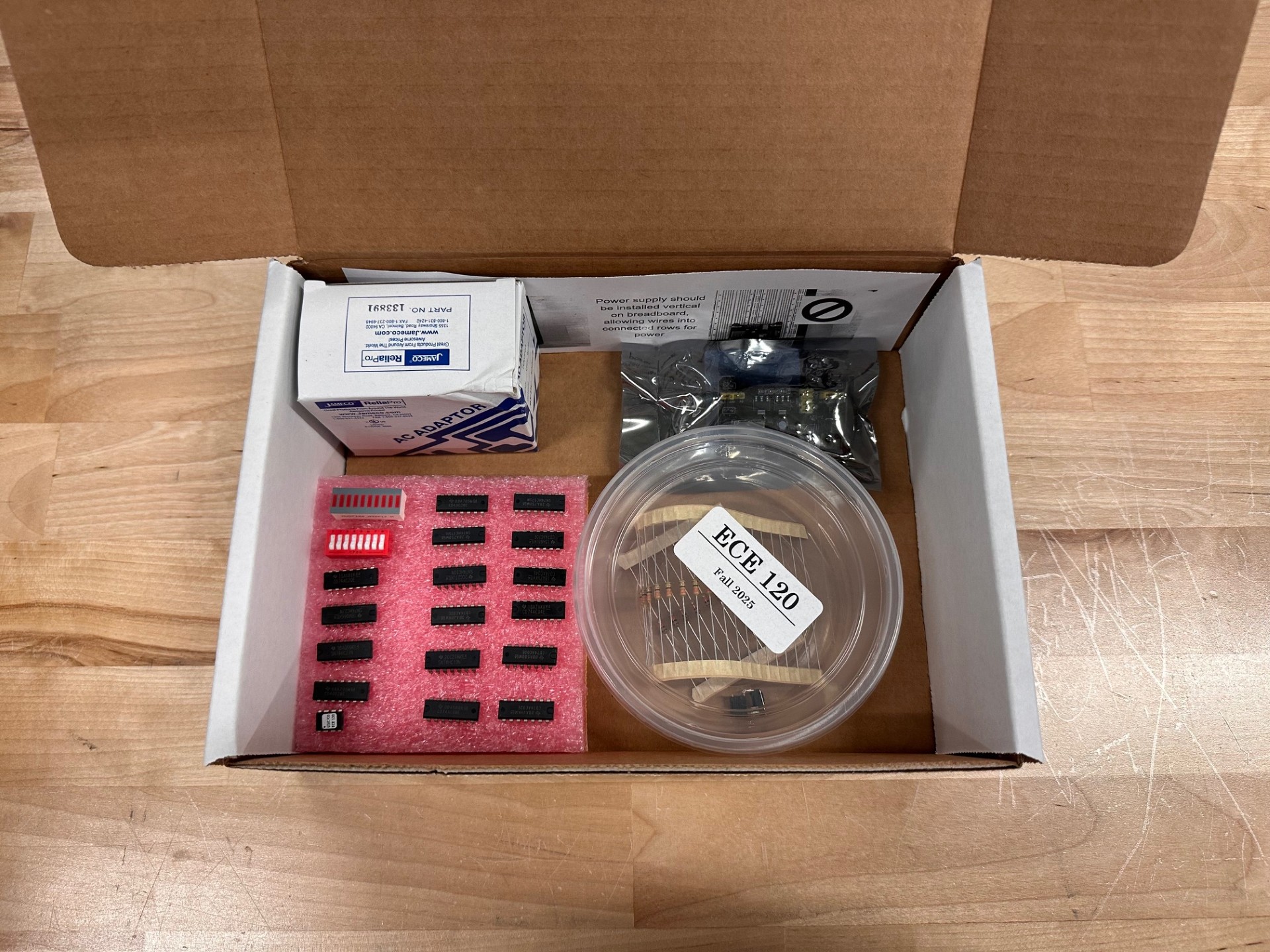

Component Kit Contents

Component Line Item Manufacturer PN Distributor PN Part Description Quantity
1 PTS645SL43-2 LFS CKN9098-ND Mini Pushbutton Switch 3
2 CF14JT330R CF14JT330RTR-ND 330Ω 20
3 CF14JT10K0 CF14JT10K0TR-ND 10kΩ 10
4 CD74AC00E 296-4214-5-ND Quad NAND 2
5 CD74AC02E 296-32940-5-ND Quad NOR 2
6 CD74AC04E 296-4217-5-ND Hex Inverter 2
7 SN74HC10 296-8214-5-ND Triple 3-input NAND 2
8 CD74AC20E 296-4237-5-ND Dual 4-input NAND 2
9 SN74HC27N 296-12896-5-ND Triple 3-input NOR 2
10 CD4002BE 296-2029-5-ND Dual 4-input NOR 2
11 74HC175N 296-8257-5-ND Quadruple D-Type FF 2
12 MV57164 1080-1184-ND Multisegment LED 1
13 76SB08T GH7177-ND 8 - DIP Switches 1
14 ATTINY13A-PU ATTINY13A-PU-ND MCU 1
