Lab Kits: ECE 210
Kit Variations
Selection based on previous enrollment, you will not need to select the variation at time of order.

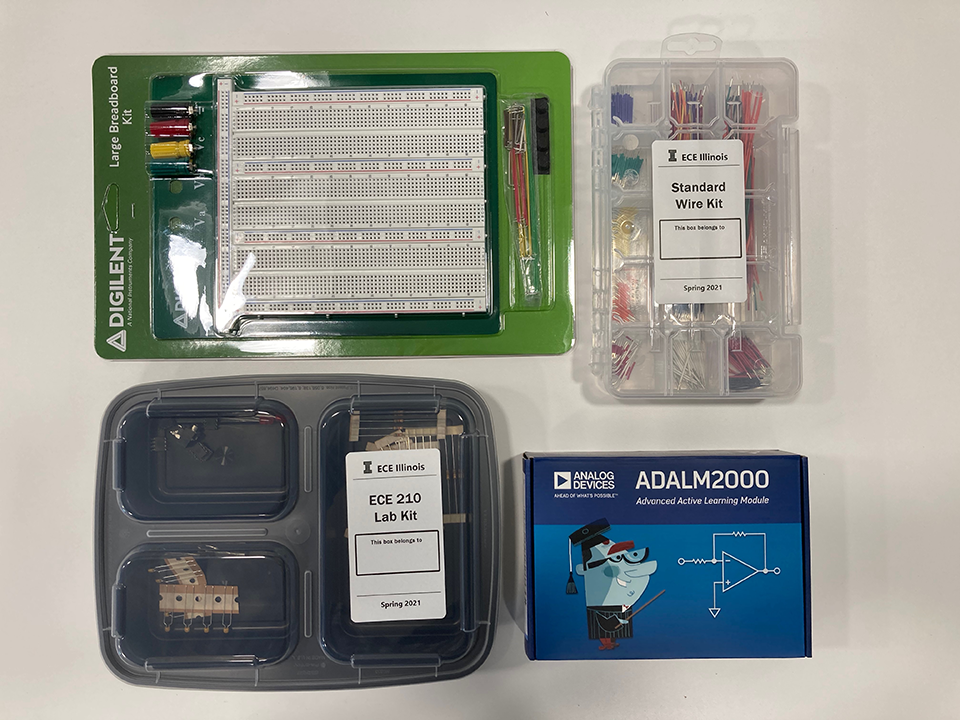

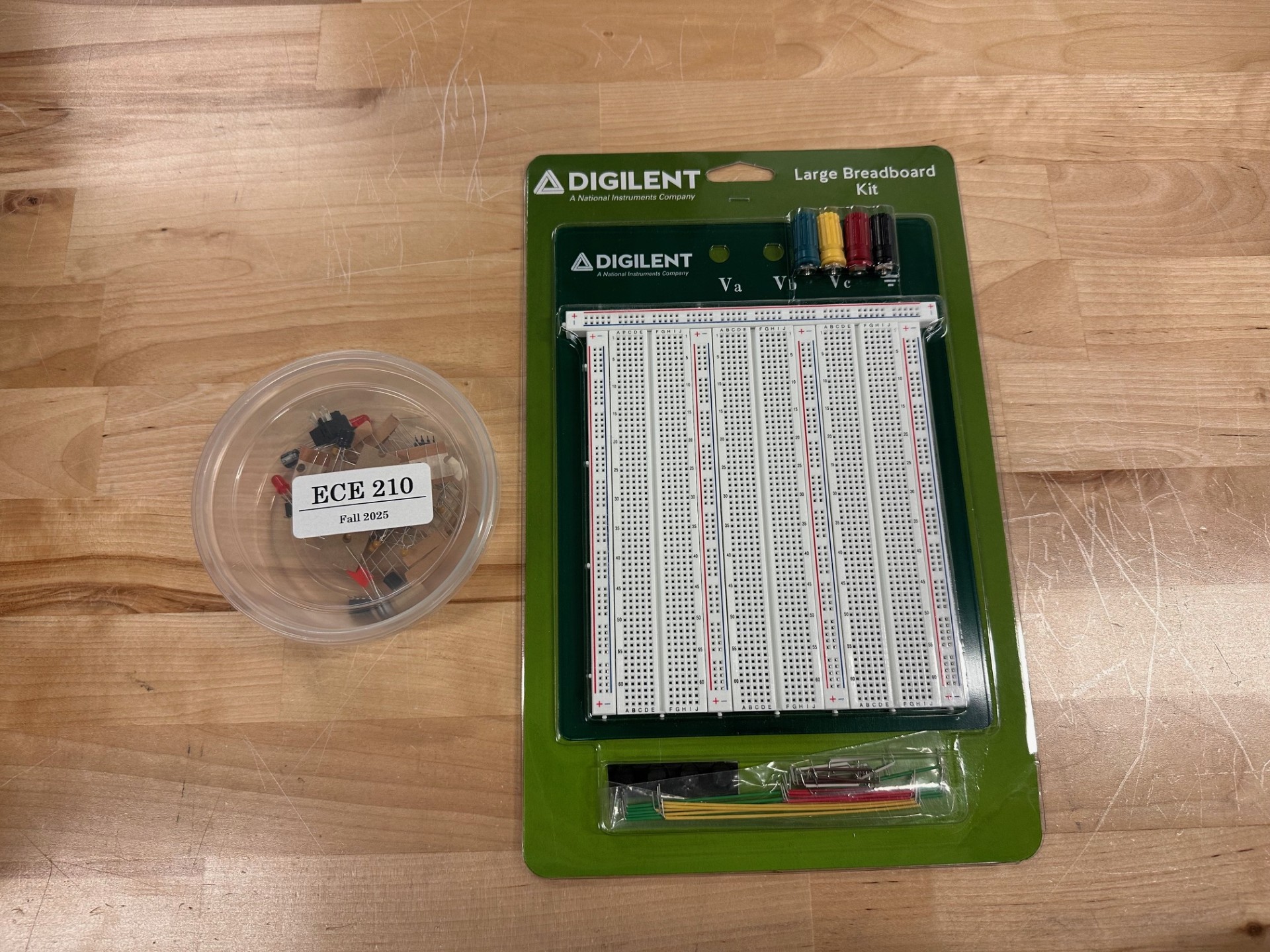

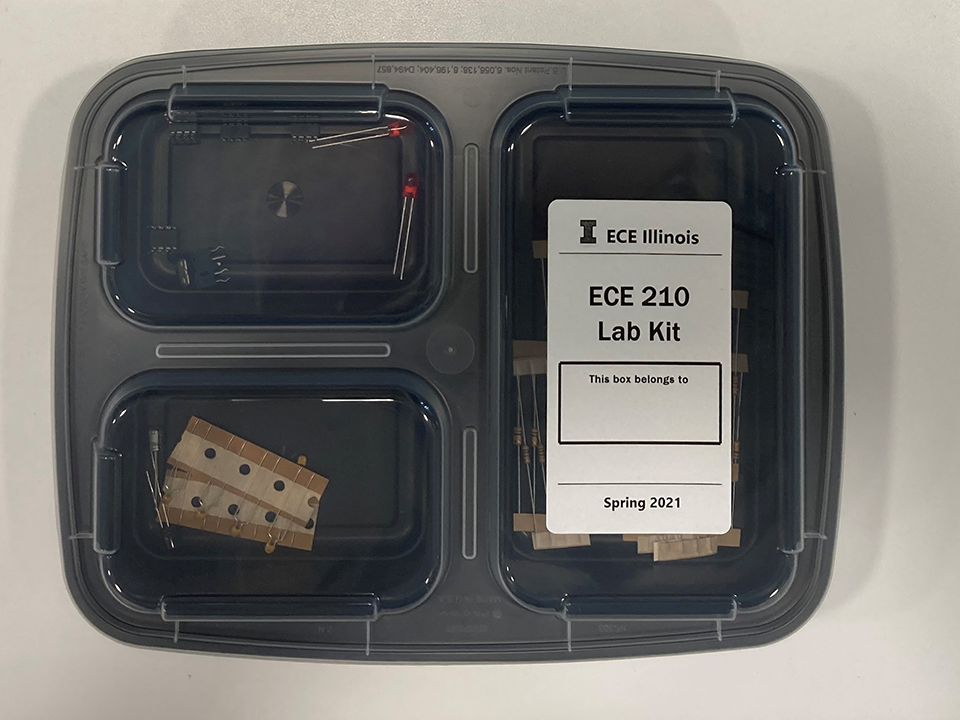

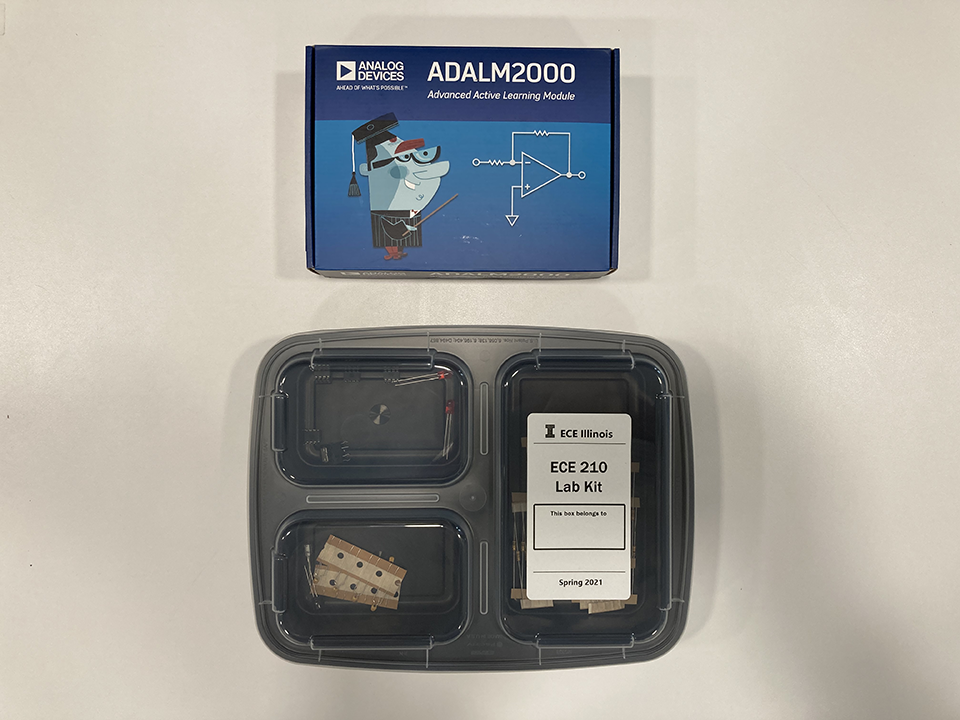

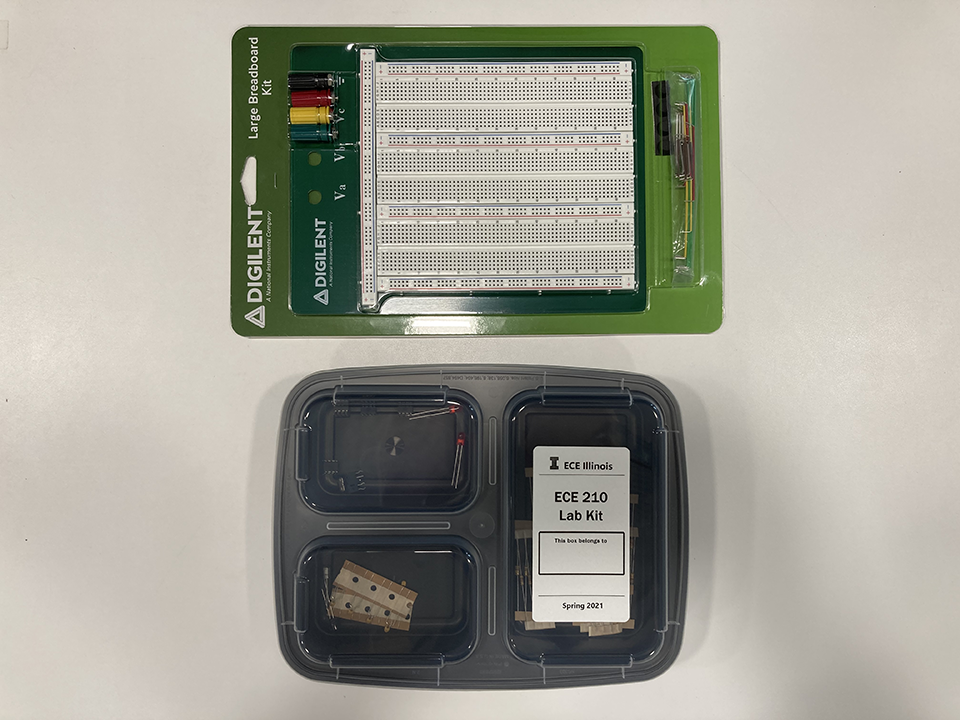

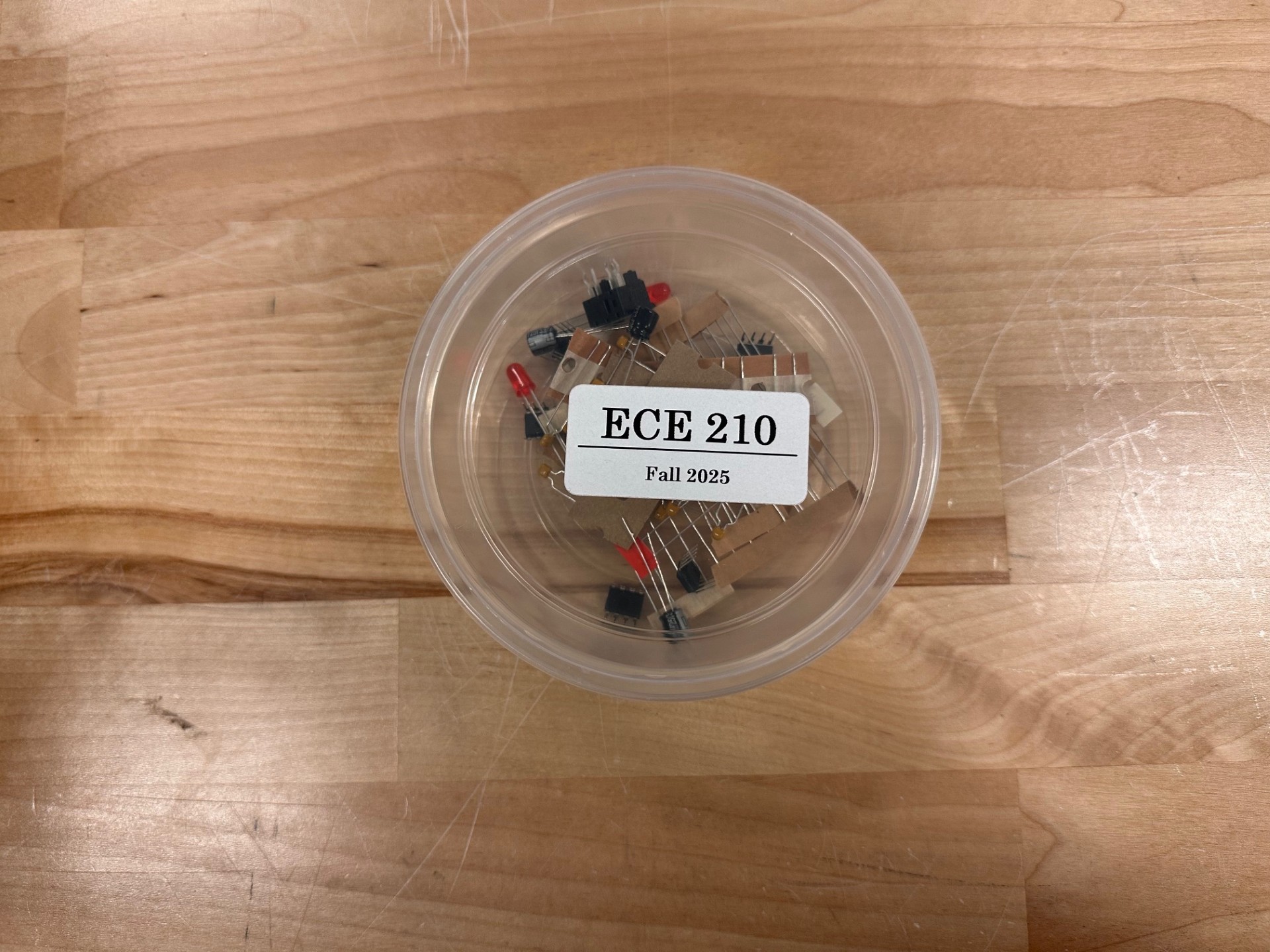

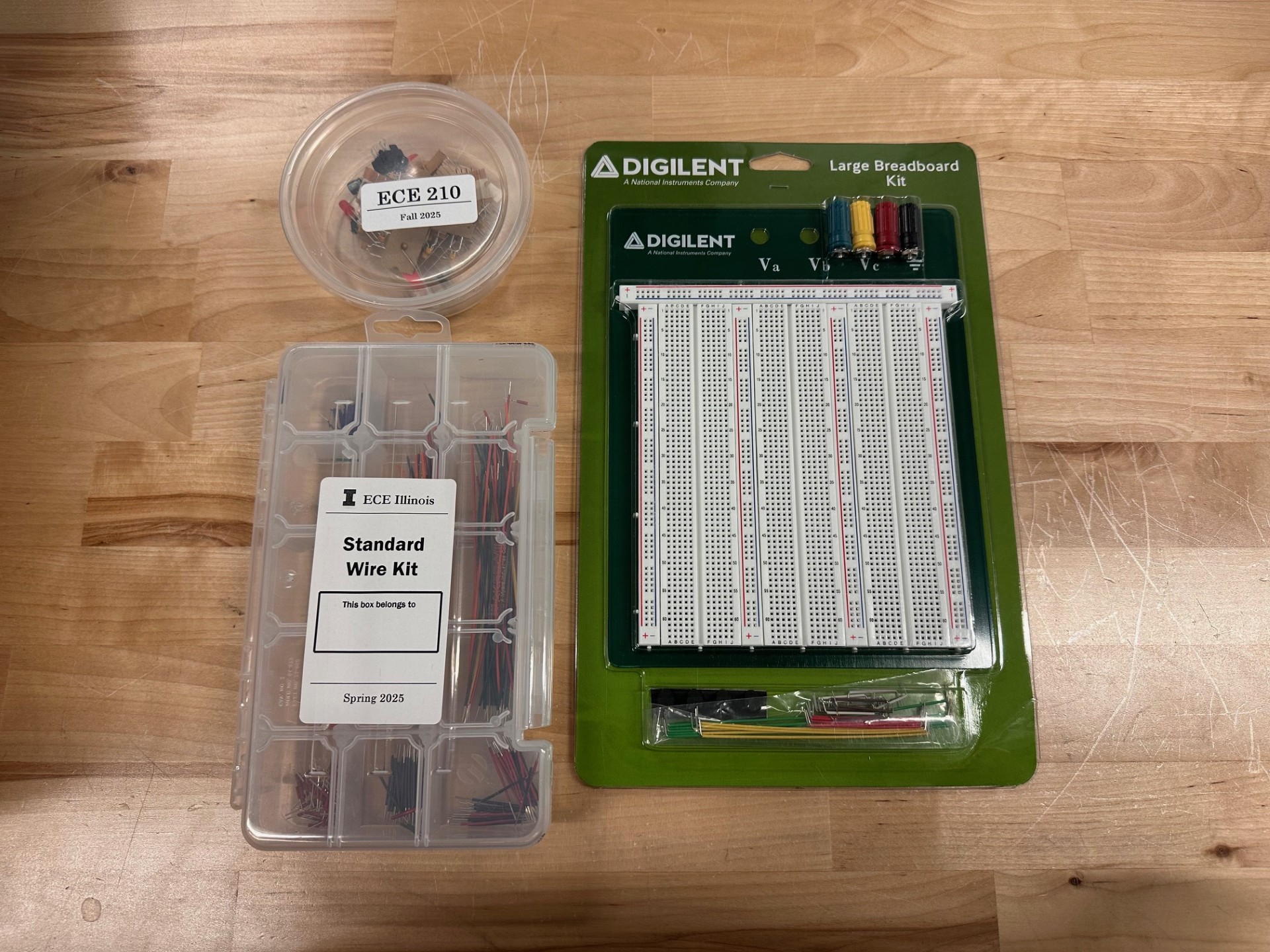

| ECE 210 A Kit | ECE 210 C Kit | ECE 210 D Kit |
|
|
|
Component Kit Contents
| Component Line Item | Manufacturer PN | Distributor PN | Part Description | Quantity |
| 1 | 1N4148 | 1N4148FSTR-ND | Diode Small Signal - 1N4148 | 2 |
| 2 | LM741CN/NOPB | LM741CNNS/NOPB-ND | Op Amp | 5 |
| 3 | CF14JT1K00 | CF14JT1K00TR-ND | 1kΩ | 4 |
| 4 | CF14JT1K60 | CF14JT1K60CT-ND | 1.6kΩ | 4 |
| 5 | CF14JT2K20 | CF14JT2K20TR-ND | 2.2kΩ | 4 |
| 6 | CF14JT3K30 | CF14JT3K30TR-ND | 3.3kΩ | 4 |
| 7 | CF14JT5K10 | CF14JT5K10TR-ND | 5.1kΩ | 4 |
| 8 | CF14JT10K0 | CF14JT10K0TR-ND | 10kΩ | 8 |
| 9 | CF14JT20K0 | CF14JT20K0TR-ND | 20kΩ | 4 |
| 10 | CF14JT100K | CF14JT100KTR-ND | 100kΩ | 4 |
| 11 | K103K10X7RF5UH5 | BC2662TB-ND | 10nF | 4 |
| 12 | K104K10X7RF5UH5 | BC2665TB-ND | 100nF | 4 |
| 13 | EEA-GA1E330 | P14491-ND | 33uf | 2 |
| 14 | SJ1-3545N | CP1-3545N-ND | Audio Jacks | 1 |
| 15 | LTL-4223 | 160-1127-ND | Red LED | 2 |
