Lab Kits: ECE 110

Kit Variations

Selection based on previous enrollment, you will not need to select the variation at time of order.

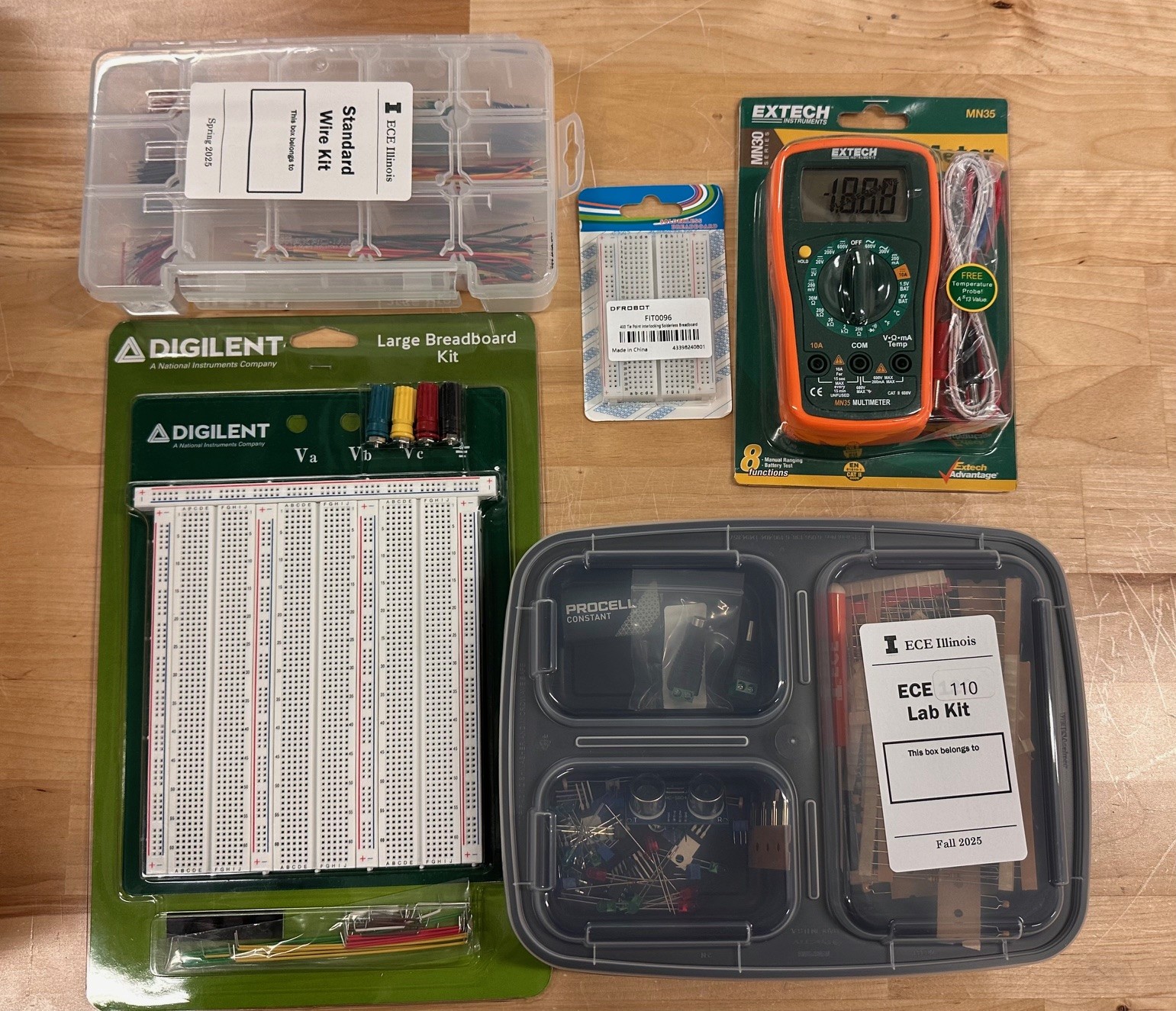

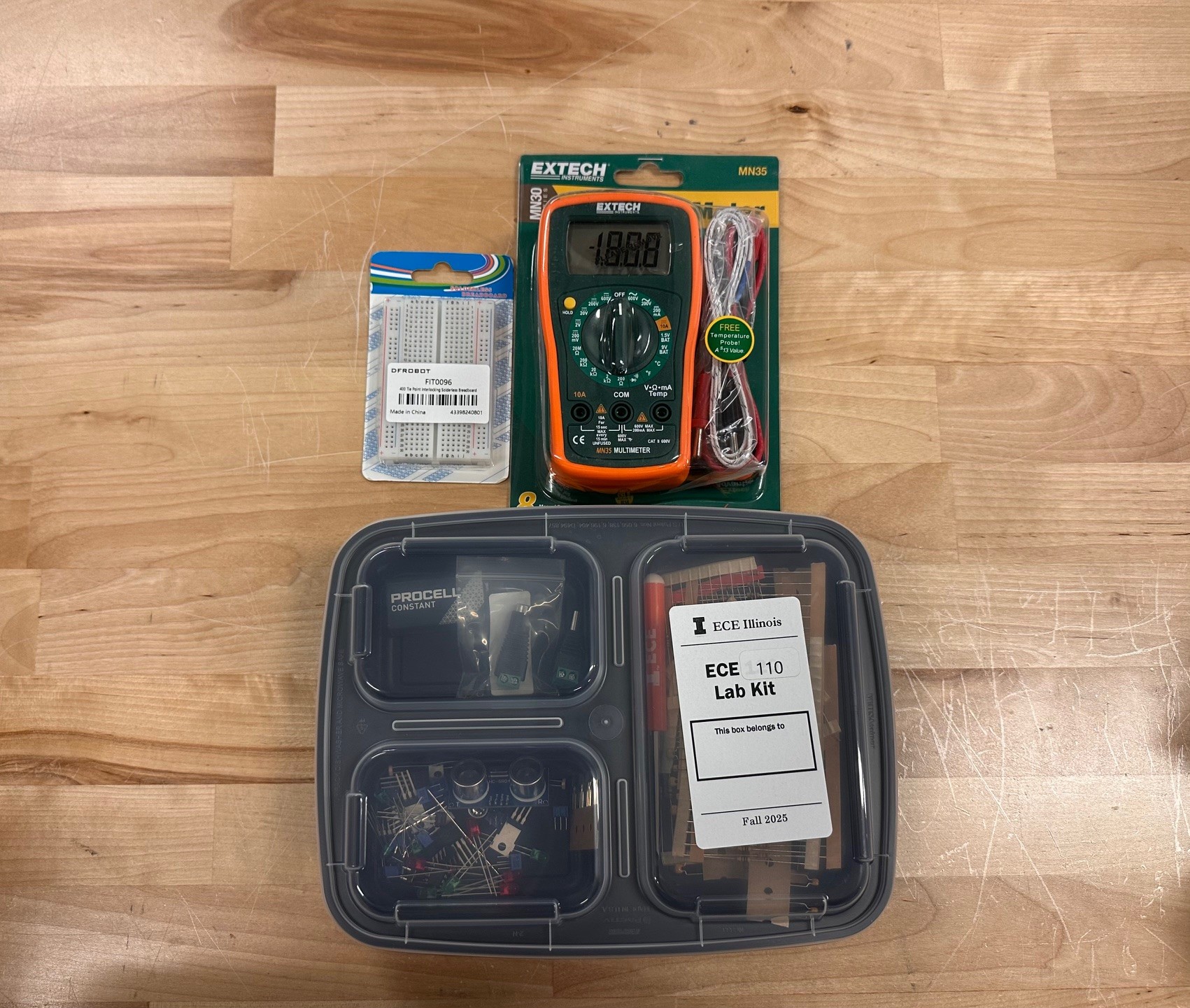

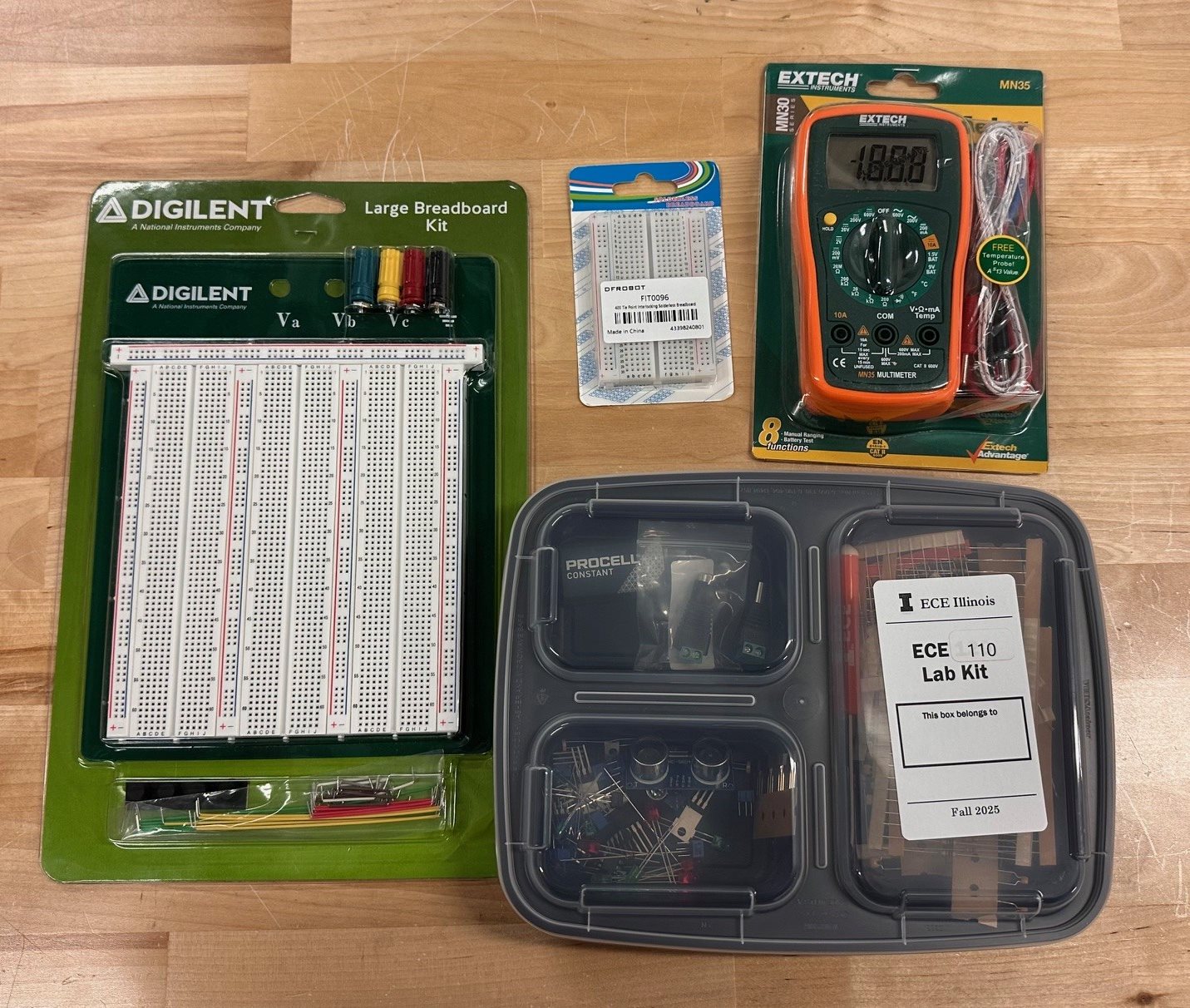

ECE 110 A Kit ECE 110 B Kit ECE 110 C Kit ECE 110 D Kit
ECE 110 Kit A ECE 110 B Kit ECE 110 C Kit ECE 110 C Kit
  • ECE 110 Component Kit
  • ADALM2000 – Advanced Active Learning Module
  • Large Breadboard
  • Standard Wire Kit
  • Small Breadboard for Robot Chassis
  • Robot Chassis
  • Robot Motors (2)
  • Robot Wheels (2)
  • Multi-meter
  • ECE 110 Component Kit
  • ADALM2000 – Advanced Active Learning Module
  • Small Breadboard for Robot Chassis
  • Robot Chassis
  • Robot Motors (2)
  • Robot Wheels (2)
  • Multi-meter
  • ECE 110 Component Kit
  • Large Breadboard
  • Small Breadboard for Robot Chassis
  • Robot Chassis
  • Robot Motors (2)
  • Robot Wheels (2)
  • Multi-meter
  • ECE 110 Component Kit
  • Small Breadboard for Robot Chassis
  • Robot Chassis
  • Robot Motors (2)
  • Robot Wheels (2)
  • Multi-meter

Component Kit Contents

Component Line Item
Manufacturer PN Distributor PN Part Description Total
1 4003 36-4003-ND Mini screwdriver (Ring Terminal) 1
2 Energizer ECE 9 V Battery 1
3 232 36-232-ND 9V Battery Clip w/ 4" Leads 1
4 30W1-00200 Cable Wholesale DC Male Power Plug 1
5 30W1-00210 Cable Wholesale DC Female Power Jack 1
6 HC-SR04 DHgate Ultrasonic Sensor 1
7 PTS645SL43-2 LFS CKN9098-ND Mini Pushbutton Switch 2
8 LTL-4223 160-1127-ND Red LED 4
9 WP7113LGD 754-1265-ND Green LED 4
10 WP5603QBDL/SD/G 754-1878-ND Blue LED 4
11 LTE-302 160-1063-ND Infrared Emmitter 1
12 LTR-301 160-1065-ND Infrared Detector 1
13 3362R-1-102LF 3362R-102LF-ND Trimpot 1 K 3
14 3362R-1-103LF 3362R-103LF-ND Trimpot 10 K 3
15 3362R-1-104LF 3362R-104LF-ND Trimpot 100 K 3
16 1N4148 1N4148FSTR-ND Diode Small Signal - 1N4148 10
17 1N4733A-TP 1N4733A-TPTR-ND Zener Diode - 5.1V 1W 2
18 BC33740TA BC33740TATB-ND Transitor- NPN (P2N2222A) 3
19 FQP30N06L FQP30N06L-ND N-Channel Mosfet 60V 30A 4
20 CD40106BE 296-3503-5-ND Schmitt Trigger CD40106B 4
21 PDV-P8103 PDV-P8103-ND Mini Photocell 2
22 NTCLE100E3103JB0 BC2301-ND
Thermistor 10K (Vishay NTCLE100E3)
1
23 EM-9745P 102-4103-ND Electret Microphone 1
24 LM358N LM358N/NOPB-ND Op-Amp (Through-Hole) - LM358 2
25 LM311P 296-1389-5-ND Comparator Single DIL-8 - LM311P 2
26 CF14JT47R0 CF14JT47R0TR-ND 47Ω 10
27 CF14JT100R CF14JT100RTR-ND 100Ω 20
28 CF14JT220R CF14JT220RTR-ND 220Ω 20
29 CF14JT330R CF14JT330RTR-ND 330Ω 10
30 CF14JT680R CF14JT680RTR-ND 680Ω 10
31 CF14JT1K00 CF14JT1K00TR-ND 1kΩ 20
32 CF14JT2K20 CF14JT2K20TR-ND 2.2kΩ 10
33 CF14JT3K30 CF14JT3K30TR-ND 3.3kΩ 10
34 CF14JT10K0 CF14JT10K0TR-ND 10kΩ 10
35 CF14JT100K CF14JT100KTR-ND 100kΩ 10
36 CF14JT1M00 CF14JT1M00TR-ND 1MΩ 10
37 K103K10X7RF5UH5 BC2662TB-ND 10nF 10
38 K104K10X7RF5UH5 BC2665TB-ND 100nF 10
39 K105Z20Y5VF5TH5 BC1168TR-ND 1µF 10
40 ECA-1HM100I P10425TB-ND 10µF 4
41 ECA-1CM101B P10369TB-ND 100µF 4
42 ECA-1CM102B P10373TB-ND 1000µF 4
