4/21/2015 Austin Keating, U. of I. News Bureau
Written by Austin Keating, U. of I. News Bureau
A more effective method for closing gaps in atomically small wires has been developed by ECE ILLINOIS researchers, further opening the doors to a new transistor technology.
Led by Professor Joseph W Lyding and graduate student Jae Won Do, the Illinois team published its results in the journal ACS Nano.
Silicon-based transistors have been the foundation of modern electronics for more than half a century, allowing for the precise control of electronic signals throughout circuits. A new transistor technology, carbon nanotube wires, shows promise in replacing silicon because it can operate 10 times as fast and is more flexible, but it has an important gap to cross.
“The connection between the nanotubes is highly resistive and results in slowing the operation of the transistor down,” Lyding said. “When electrons go past that junction, they dissipate a lot of energy.”

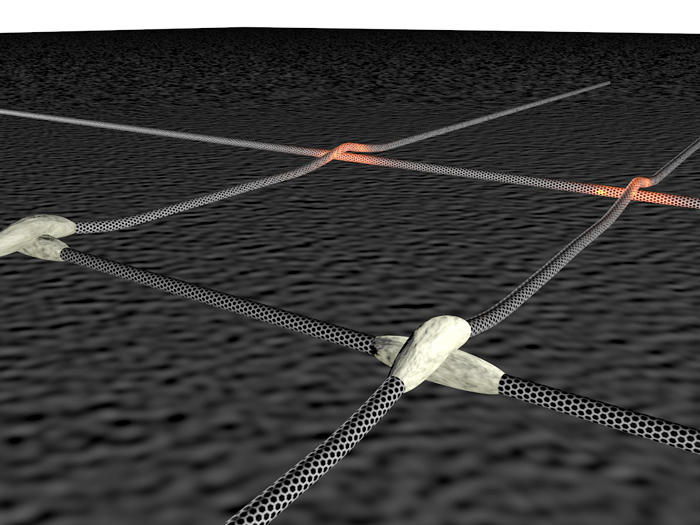

The resistance results in heat pooling at the junctions between the tubes, providing researchers with the perfect opportunity to “solder” these connections using a material that reacts with heat to deposit metal across the junctions. Once the current runs through, the deposited metal reduces the junction resistance, effectively stopping the energy loss.

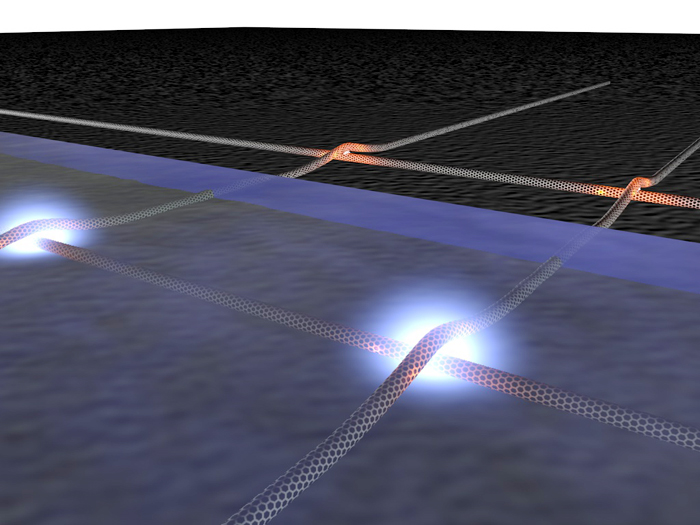

Until now, the problem has been finding a realizable approach to applying the heat-reactive materials. In 2013, Lyding and Do used a vacuum chamber to apply a gaseous chemical to metallize the junctions. The new technique, the subject of the new paper, takes a different route by applying a thin layer of solution, made from compounds that contain the metal needed to solder the junctions together.
“Our new technique is much simpler. It involves fewer steps and it’s more compatible to existing technology,” Do said. “We’re getting similar improvements to what we got from the gaseous method, only now we can experiment with the capabilities of other materials that aren’t gases, which will let us improve the transistors’ performance even more.”
To expand the technique to encompass more materials, Lyding’s group teamed with ECE ILLINOIS Adjunct Professor Eric Pop, an expert on carbon nanotube synthesis and transfer, as well as with Chemistry Professor Greg Girolami.
Do said the new technique is transferable to the current manufacturing equipment silicon transistor manufacturers are using.
“With this method, you just send current through the nanotubes and that heats the junctions. From there, chemistry occurs inside that layer, and then we’re done. You just have to rinse it off,” Lyding said. “You don’t need a custom, expensive vacuum chamber.”
The next step for the team is to start looking at compounds for the junctions that help to amplify the current even more.
“Now that we see this effect, how do we get to the next level? How do we improve by another order of magnitude? We’re advancing this work as we speak, with chemicals that have been synthesized specifically for speed,” Lyding said.
The National Science Foundation, the Office of Naval Research and the Army Research Office supported this work. Lyding and Do also are affiliated with the Beckman Institute for Advanced Science and Technology.
